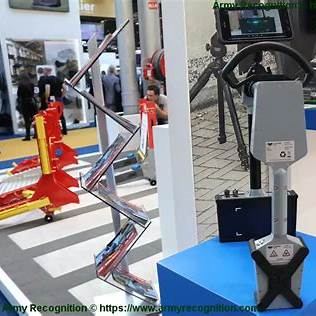

Teledyne GO-SCAN C-VIEW – Real-Time Portable X-Ray Imaging System
The Teledyne GO-SCAN C-VIEW is a lightweight, portable, and ruggedized X-ray imaging system designed for real-time non-destructive testing (NDT) applications. It is specifically developed to detect Corrosion Under Insulation (CUI), inspect complex industrial components, and support various field inspection tasks.

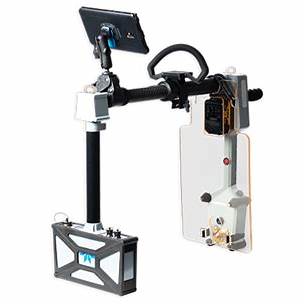

This handheld system features an integrated high-speed CMOS detector paired with a battery-operated 70kV X-ray tube, enabling high-resolution, real-time imaging directly on-site. With its compact design and wireless operation, the GO-SCAN C-VIEW is ideal for inspectors needing a rapid and efficient tool for detecting defects in metals, composites, and other materials.
Product Capabilities and Benefits
- Real-Time High-Resolution Imaging: Delivers up to 30 frames per second with a 99 µm pixel pitch CMOS detector, providing instant and detailed visualization of inspection areas.
- Portable and Battery-Powered: Weighs less than 6.5 kg (14.3 lbs) and operates on a battery-powered 70kV X-ray source, enhancing field mobility and eliminating the need for external power sources.
- Wireless Connectivity: Offers both wireless and wired communication options, allowing seamless real-time image transmission to tablets or workstations for immediate analysis and remote collaboration
- Rugged Design: Built to withstand harsh industrial environments with an IP65 rating, ensuring durability and reliability during inspections.

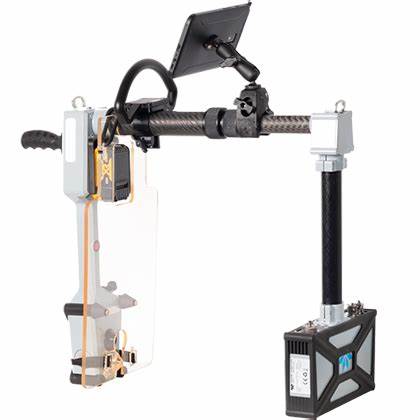

- Adjustable Arm Length: Features an adjustable arm length ranging from 300 to 650 mm (12 to 26 inches), providing flexibility to accommodate various inspection scenarios.
Industries of Use
- Aerospace & Defense: Inspect aircraft structures, composite materials, and metallic components.
- Oil & Gas: Detect Corrosion Under Insulation (CUI) and assess pipelines, pressure vessels, and refinery equipment.
- Power Generation: Evaluate welds, turbine blades, and high-stress components in nuclear, wind, and thermal plants.
- Manufacturing & Automotive: Conduct quality control, defect detection, and material integrity analysis.
- Construction & Infrastructure: Inspect bridges, tunnels, and high-load structures for internal damage.
Features:
Real-Time High-Resolution Imaging
Delivers up to **30 frames per second** with a **99 µm pixel pitch CMOS detector**, providing instant, high-definition visualization of inspection areas.
Portable & Battery-Powered
Weighing less than **6.5 kg (14.3 lbs)**, the system is **battery-operated**, eliminating the need for external power sources and making field inspections seamless.
Wireless Connectivity & Data Sharing
Transmits images **wirelessly or via wired connection** to tablets, workstations, or cloud-based platforms for instant analysis and collaboration.
Optimized for CUI Detection

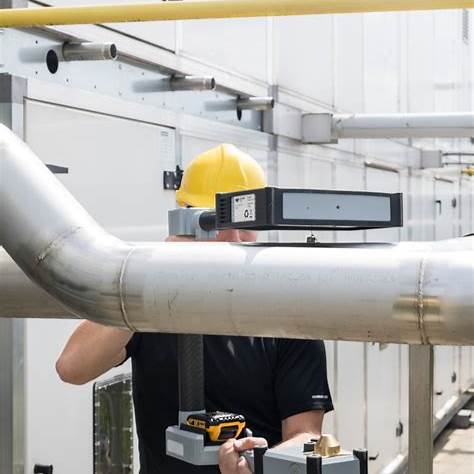

Specially designed for **Corrosion Under Insulation (CUI) assessments**, allowing for inspections with **minimal insulation removal**, reducing downtime and labor costs.
Rugged & Durable
Built to withstand **harsh industrial environments**, with an **IP65-rated enclosure**, ensuring reliability in challenging conditions.
Adjustable Arm Length
Features a **300 to 650 mm (12 to 26 inches) adjustable arm**, offering flexibility for various inspection needs.
Long Battery Life
Runs for **up to 2 hours on a single 5 Ah battery**, supporting extended inspection tasks without frequent recharging.
Applications:
Corrosion Under Insulation (CUI) detection
Weld and pipeline inspections
Composite material evaluation
Aerospace structural assessments
Bridge and infrastructure NDT
Battery and electronic component analysis
Power plant equipment inspections
Automotive part integrity testing
Specifications
| Imaging Technology: | High-resolution CMOS detector |
| Pixel Pitch: | 99 µm |
| Frame Rate: | Up to 30 fps |
| X-ray Source: | Battery-powered 70kV X-ray tube |
| Communication: | Wireless or Wired |
| Adjustable Arm Length: | 300 to 650 mm (12 to 26 inches) |
| IP Rating: | IP65 |
| Power Supply: | Dewalt battery |
| Battery Performance: | Approximately 2 hours (with 5 Ah battery) |
| Weight: | Less than 6.5 kg (14.3 lbs) |
| Operating Temperature: | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature: | -30°C to +60°C (-22°F to +140°F) |
