ViewTech VJ-4 6 mm × 8m Borescope
- Regular price
- $16,125.00
- Sale price
- $16,125.00

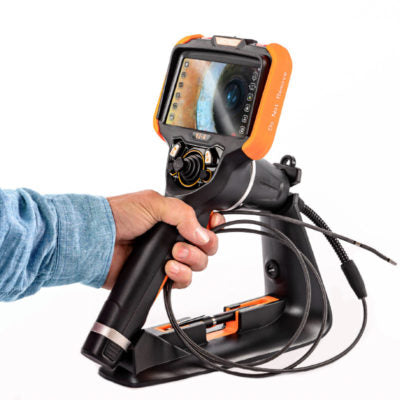

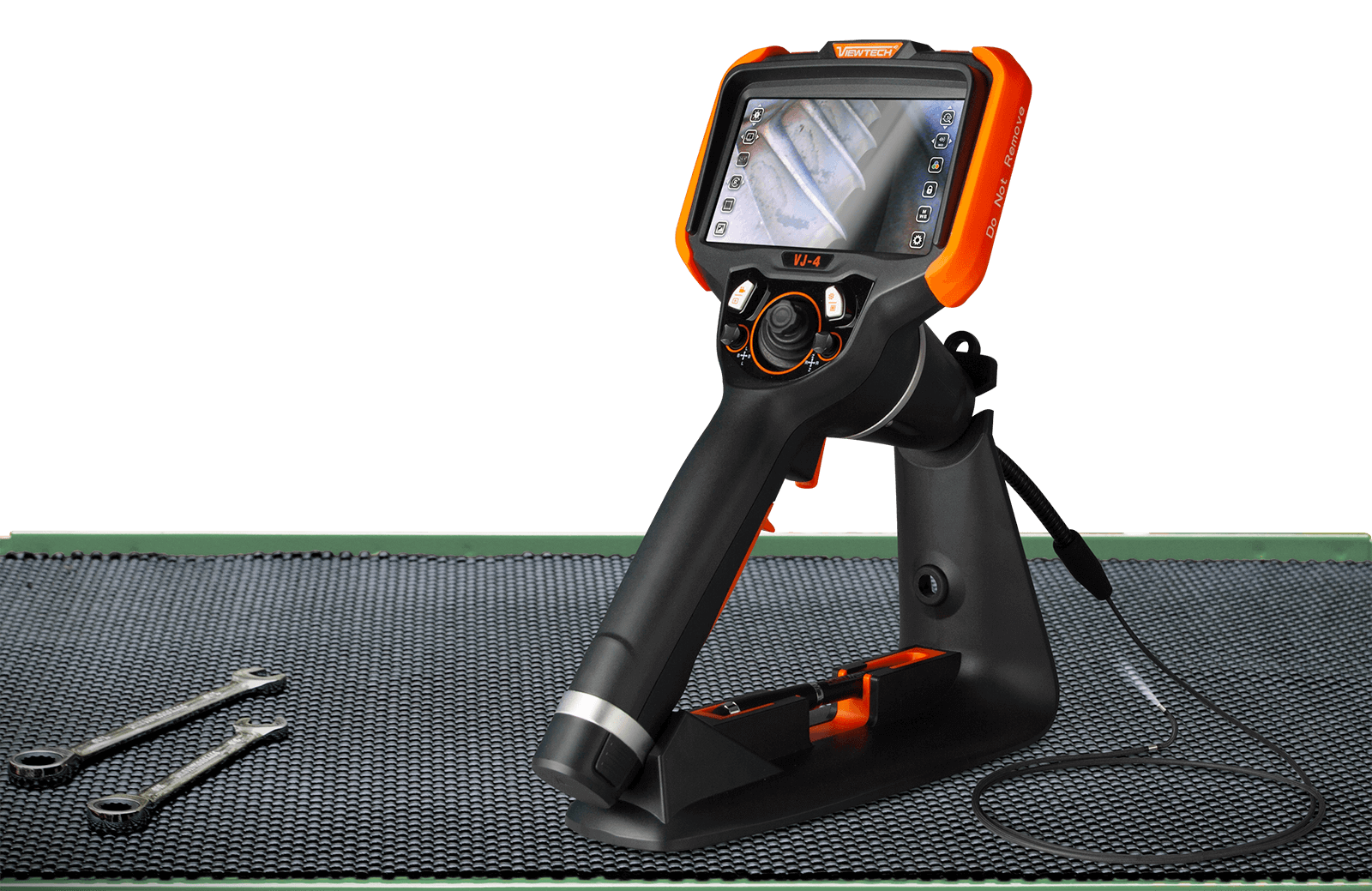

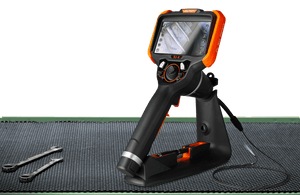

The ViewTech VJ-4 6 mm × 8 m is a handheld articulating video borescope designed for remote visual inspection where deep reach, clarity, and durability are critical. It combines an 8-meter tungsten-braided insertion tube with a 6.0 mm diameter and a 5.5-inch OLED touchscreen display. The joystick-controlled articulation provides full navigation of complex internals such as turbines, piping, heat exchanger bundles, and engines. Features include still/video capture, on-screen annotation and reference measurement, folder-based file management, and multiple data output options.
Product Capabilities
-
Long-reach inspections with an 8 m, crush-resistant tungsten insertion tube
-
360° all-way mechanical articulation with stable back-bend optimized for extended length
-
High-output LED array with 10-step brightness control
-
Capture, annotate, measure, and organize images/videos on-device
-
IP67-rated insertion tube for reliable operation in harsh conditions
-
Multiple data export options including HDMI, USB-C, and SD
-
Multiple data export options including HDMI, USB-C, and SD
Industries of Use
-
Aerospace & Aviation
-
Power Generation
-
Oil & Gas
-
Chemical Processing
-
Automotive & Manufacturing
-
Marine
-
Pulp & Paper
-
Utilities
-
Field Service & MRO
Key Benefits
-
Enables rapid inspection without disassembly
-
Improves operator efficiency with intuitive joystick control and OLED interface
-
Provides evidence-grade images and video for QA/QC
-
Withstands demanding field environments with crush-resistant and IP67-rated tube
-
Streamlines reporting and data handling through multiple export methods
Features:
8 m Reach, 6.0 mm OD: Tungsten-braided tube provides long-range access with durability against crushing and abrasion.
Mechanical Articulation: 360° joystick-controlled articulation with auto lock ensures stable viewing during extended inspections.
5.5″ OLED Touchscreen: High-contrast display with responsive controls for ease of use in the field.
Advanced Illumination: Six high-intensity LEDs with adjustable brightness provide optimal visibility in dark environments.
Capture and Annotate: Record images and video, add measurements, and mark up directly on-screen.
Flexible Data I/O: Export via HDMI, USB-C, or SD for streamlined reporting and analysis.
Applications:
Turbine hot-section inspections
Heat exchanger tube and shell inspections
Piping corrosion and erosion assessments
Gearbox and bearing cavity evaluations
Valve body and seat condition checks
Diesel engine cylinder and injector inspections
Weld root and overlay quality assurance
Castings and internal passage verification
General outage and turnaround inspections
Incoming QC and maintenance troubleshooting
| Feature | Specification |
|---|---|
| Insertion Tube Diameter | 6.0 mm |
| Insertion Tube Length | 8.0 m (other lengths available) |
| Sheath | Tungsten EasyGlide, crush-resistant |
| Articulation | 360° all-way, joystick controlled |
| Back-Bend (8 m) | Approx. 90° ±10° |
| Angle of View | 110° (HD) / 120° (SD) |
| Depth of Field | 8–100 mm (HD) / 7–80 mm (SD) |
| Effective Pixels | 921,600 (HD) / 307,200 (SD) |
| Illumination | 6 high-intensity white LEDs, ≤20,000 lux |
| Display | 5.5″ OLED touchscreen |
| Controls | Joystick with auto lock, dual mini-joysticks |
| Brightness Control | 10-step LED adjustment |
| Media Formats | Photo: BMP/PNG/JPG; Video: AVI/MP4 |
| Storage | Removable SD card |
| I/O Ports | HDMI, USB-C, SD |
| Battery | 2 × 18650B Li-ion rechargeable |
| Run Time | Up to 3 hours |
| Operating Temperature | Base: −20 °C to +50 °C; Tube: −20 °C to +70 °C |
| Ingress Protection | Tube IP67 |
| Dimensions | 13.6″ × 6.2″ × 7.3″ |
| Weight | 0.95 kg (2.09 lb) |
